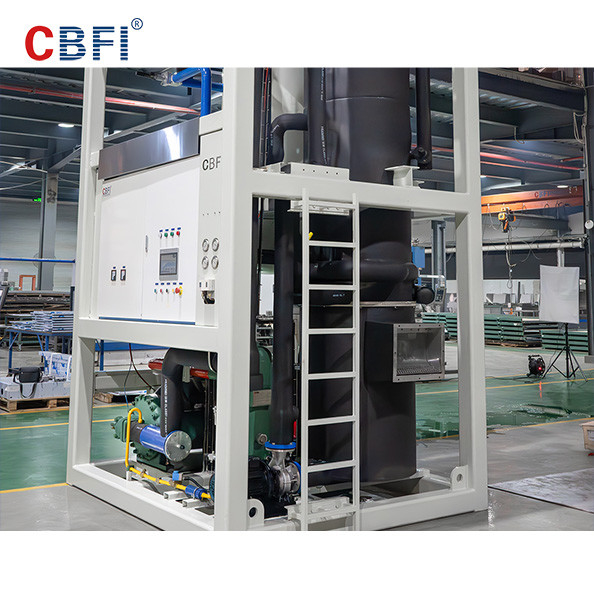

Germany Siemens PLC Control System Intelligent Tube Ice Machine 1000kg - 30000kg

Germany Siemens PLC Control System Intelligent Tube Ice Machine 1000kg - 30000kg
Germany Siemens PLC Control System Intelligent Tube Ice Machine 1000kg - 30000kg Germany Siemens PLC Control System Intelligent Tube Ice Machine 1000kg - 30000kg

Hình ảnh lớn :  Germany Siemens PLC Control System Intelligent Tube Ice Machine 1000kg - 30000kg

Thông tin chi tiết sản phẩm:
Place of Origin: Guangzhou, China
Hàng hiệu: CBFI
Chứng nhận: ISO9001, ISO14001
Model Number: TV10-TV300
Thanh toán:
Minimum Order Quantity: 1 set
Giá bán: USD 0-10000000/ Set
Packaging Details: Wooden case or Bubble film
Delivery Time: 40 Days after the payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 50 sets/Month

Germany Siemens PLC Control System Intelligent Tube Ice Machine 1000kg - 30000kg

Sự miêu tả
Model: TV10-TV300 Capacity: 1,000kg~30,000kg
Compressor: Germany / Germany Bock/ American Copeland Control System: Germany Siemens
Expansion Valves: Denmark Danfosse Solenoid Valves: Italy Castal
Điểm nổi bật:

Tube Ice Machine

,

Tube Ice Maker

CBFI Germany Compressor, Germany Siemens PLC Control System Intelligent Tube Ice Making Machine

Main Features

1. Ice tube machine for produce food grade ice too, tube ice is edible ice.
2. Diameter of tube ice we usually design it as 22mm, 28mm, or 35mm, length of ice is about 30mm to 50mm.
3. Daily capacity of ice tube machine can be from 1ton to 30tons.

Germany Siemens PLC Control System Intelligent Tube Ice Machine 1000kg - 30000kg 0



Working Condition:



1. Use hot Freon gas to make ice fall off fast with the whole process takes only 150~180 seconds.
2. After the ice is off, the water of low temperature is used for ice-making, saving energy consumption and increasing the volume of production of ice.
3. With the unique water distributive pan and air mouth, the water can evenly flow on the tube wall of the evaporator spirally, so it improves the efficiency of heat transfer.
4. The use of stainless steel SUS304, accords with the health and safety requirements.
5. The use of air pressure control excludes the risk of rupture of the evaporator tube and the tube ice diameter can be adjusted according to customers' needs.
6. Adopt the highest quality spare parts of international brands, such as , Danfoss, Siemens, etc.





Model Ice Making Capacity Rated Power Circulationg Water Pump Power Cooling Water Pump Capacity Cooling Fan Capacity Ice Cutter Motor Machine Dimension Weight of Machine
No. Ton/24h Kw Kw Kw Kw Kw WxHxL(mm) KG
TV10 1.0 4.28 0.55 1.1 0.18 0.75 1100x900x1760 900
TV20 2.0 7.77 0.55 1.5 0.37 0.75 1250x1000x1950 1200
TV30 3.0 12.33 1.1 1.5 0.56 0.75 1400x1100x2200 1500
TV50 5.0 21 1.5 2.2 0.75 1.5 1600x1400x2250 1800
TV100 10.0 29.2 1.5 4 1.5 1.5

1200x1200x3100

2300x1550x1800

3500
TV150 15.0 49 2.2 5.5 1.5 1.5

1500x1200x4500

2700x1950x2250

4250
TV200 20.0 58.5 2.2 5.5 2.2 2.2

1600x1300x4700

3100x2200x2250

6500
TV300 30.0 87.6 2.2 15 2.2 2.2

3000x2200x2500

2200x1900x6200

7200



Payment and Delivery:

1. The payment can be T/T, L/C, Western Union/ Money Gram and cash.

2. Deposit is 30%. Balance is 70%. When we get your deposit, we start to produce the machine. The balance should be paid before shipping.

3. The delivery time is about 40 days after the deposit.

4. We can also ship for you if you pay the freight to us.

Germany Siemens PLC Control System Intelligent Tube Ice Machine 1000kg - 30000kg 1
