Thông tin chi tiết sản phẩm:
|
| Condition: | Brand new | Output: | 1 ton to 30 tons |
|---|---|---|---|
| Tube ice diameter: | 22mm, 28m, 35mm | Machine shipping: | one 20 feet container or one 40 feet container |
| Compressor: | Germany / Germany Bock/ Taiwan Hanbell | Control: | Germany Siemens |
| Điểm nổi bật: | Tube Ice Machine,Ice Tube Maker |
||

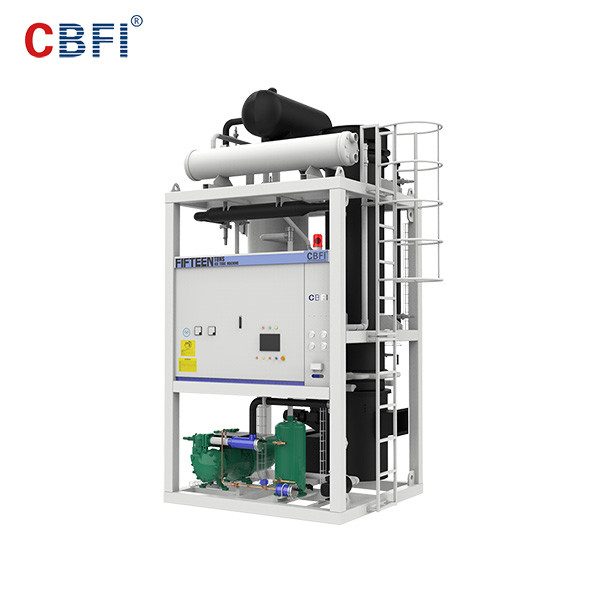

CBFI Siemens PLC Control System, Germany compressor, LG electric accessories Ice Tube Machine
Tube Ice Maker Machine Models for Reference
| Item No. | Production | Compressor Rated Power | Circulating Water Pump Power | Cooling Water Pump Power | Cooling Fan Power | Ice Cutter Motor Power |
Machine Dimension |
Weight of Machine |
| Ton/24H | KW | KW | KW | KW | KW | L*W*H | KG | |
| TV10 | 1.0 | 3.69 | 0.37 | 1.1 | 0.18 | 0.75 | 1320*950*1800 | 900 |
| TV20 | 2.0 | 7.11 | 0.55 | 1.1 | 0.18 | 0.75 | 1400*1100*1800 | 1200 |
| TV30 | 3.0 | 9.68 | 0.55 | 1.1 | 0.37 | 0.75 | 1500*1100*1950 | 1500 |
| TV50 | 5.0 | 17.47 | 0.55 | 1.5 | 0.75 | 0.75 | 1600*1250*2200 | 1800 |
| TV100 | 10.0 | 30.89 | 0.75 | 2.2 | 1.5 | 1.5 | 1700*1300*2200 | 3500 |
| TV150 | 15.0 | 42.6 | 1.5 | 2.2 | 2.2 | 1.5 | 3000*1500*2200 | 4250 |
| TV200 | 20.0 | 53.2 | 1.5 | 2.2 | 2.2 | 1.5 | 3500*1500*2200 | 6500 |
| Machine running condition: water temperature 23°C, evaporate temperature -12°C,condensing temperature 40°C, reference valve under 50Hz power condition. Real production of machine will have a little change according to change of water temperature |
Commercial used Tube Ice machine
1.Daily Capacity : 1 ~ 30 ton
2.Ice making cycle : 20 ~ 25 mins
3.Ice Diameter : 22mm,28mm,35mm.
Installation:
1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2).Installing by our engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
We have customer in China, Malaysia, Indonesia, Philippine, Maldives, Vietnam, Thailand, Myanmar(Burma), Dubai, Syria, Iran, Saudi Arabia, Egypt, Lebanon, Sudan, Oman, Mexico, Venezuela, Argentina, Nigeria, Angola, Congo, South Africa, Niger, Benin, Cameroon, Burkina Faso, Guinea, Guinea-Bissau, Mozambique, Papua New Guinea……
