|Place of Origin:||Guangzhou, China|
|Chứng nhận:||ISO, CE, BV, SGS|
|Minimum Order Quantity:||1 set|
|Giá bán:||USD1 - USD999999|
|Packaging Details:||Standard wooden case for the 1 ton Tube ice machine|
|Delivery Time:||30 work days|
|Payment Terms:||Western Union, L/C, T/T, MoneyGram|
|Supply Ability:||60 set per month|
|PLC:||Germany Siemens||compressor:||Germany Bitzer/ Germany Bock/ America Copeland|
|Expansion valve:||Denmark Danfoss||Solenoid valve:||Italy Castel|
|Ice shape:||tube ice/ shell ice||Ice diameter:||22mm; 28mm; 35mm|
|Cooling system:||Air cooled, and water cooled||Ice length:||30mm to 50mm|

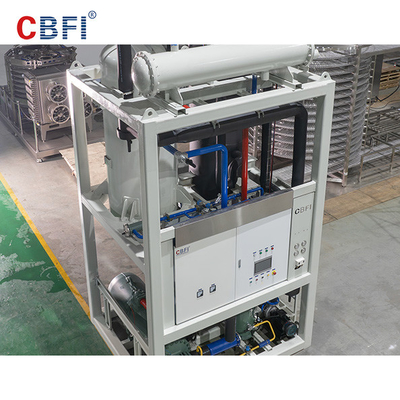

High Output Tube Ice Maker / Ice Making Machines For Fast Food Shops / Supermarkets
1. Ice tube machine for produce food grade ice too, tube ice is edible ice.
2. Diameter of tube ice we usually design it as 22mm, 28mm, or 35mm,
Length of ice is about 30mm to 50 mm.
3. Daily capacity of ice tube machine can be from 1ton to 40tons.
4. Tube ice macine was designed save space, high efficiency heat exchange, and energy saving, so it is widely favored by market.
different capacity tube ice machine
1. It can be directly eaten
2. It can be used to freeze drinks
3. Mix wines
4. Cool food stuffs
5. Make ice pastries and keep fresh
1. Perfect design: adopt 3D simulation assembly, compact structure,easy operate and maintain
2. health: all the metal of the ice-making machine that will touch with water are SUS304,impurities and metal ions that effect transparent function was discharged from circulating bin during the end of each cycle of ice making.
3. Efficient performance: ice maker adopt special alloy material and with special heat treatment, make the ice maker with best thermal performance.
4. Full automatically: PLC system controls the whole ice making process.
Tube ice maker machien technical parameters:
|Item||Compressor||Water circulating pump||Ice cutter||Cooling tower||Water pump|
|Cooling capacity||Power||Power||Power||Fan Motor Power||Power|
|1 ton||17.8 KW||7.2 KW||0.37 KW||0.75 KW||0.18 KW||1.1 KW|
|2 tons||22.3 KW||7.9 KW||0.55 KW||0.75 KW||0.37 KW||1.5 KW|
|3 tons||30.1kw||10.6 kw||1.1 KW||0.75 kw||0.56 KW||1.5 KW|
|5 tons||60.2 kw||21 kW||1.5 KW||1.5 KW||0.75 kw||2.2 KW|
|10 tons||83.3 kW||29.2 kW||1.5 KW||1.5 KW||1.5 KW||4 kw|
|15 tons||139 kw||49 kW||2.2 KW||1.5 kw||1.5 kw||5.5 kw|
|20 tons||166.6 kw||58.5 kw||2.2 kw||2.2 kw||2.2 kw||5.5 kw|
|30 tons||249.9 kw||87.6 kw||2.2 kw||2.2 kw||2.2 kw||7.5 kw|
The above information is according to adopt water cooled condenser.
Size of machine is before installation. Size of machine is the same with the size before
It didn’t mention size of cooling tower, cooling tower usually install in the outside.
Machine running condition:
1. water temperature: 28Centi degree,
2. evaporate temperature: -12Centi degree,
3. condensing temperature: 40Centi degree,
4. reference valve under 50Hz power supply.
Real production of machine will have a little change according to change of water
temperature and ambient temperature.
Standard wooden case; Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings; Machine come into use, customer only need prepare power for the machine; All required components for install the machine will be provided.
some questions and answers here:
1. Q: do you test the ice machine in your factory?
A: yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
2. Q: can you load ice machine into container?
A: we have containerized ice block machine. Our export ice machine is designed based on the standard of container, it is easily to load. The 25kg ice of 10tons can load in container of 40 feet. for domestic ice machine of over 12 tons per day, we design based on the standard of truck, which can easily drive into your factory.
3. Q: all your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for abord? Such as 440V 60HZ or 220V three phase that suitable for America?
A: our ice machine and power,voltage can suitable for your country, please make the power requirement be clear in your order.
