Thông tin chi tiết sản phẩm:
|
| Máy nén: | máy nén Đức | Đường kính băng ống: | 35mm, 28mm, 22mm |
|---|---|---|---|
| thiết bị bay hơi: | Ống thép không gỉ 304 liền mạch | cách làm mát: | Làm mát bằng nước |
| Công suất hàng ngày: | 10.000kg/24h | Hệ thống điều khiển: | Màn hình cảm ứng với tiếng Anh |
| PLC: | hệ thống Siemens | Nguồn gốc: | Quảng Châu, Trung Quốc |
| Vật liệu: | thép không gỉ 304 | chất làm lạnh: | R404a |
| Làm nổi bật: | Tube Ice Machine,Ice Tube Maker |
||
2. CBFI tube ice machine pictures
5 ton tube ice machine

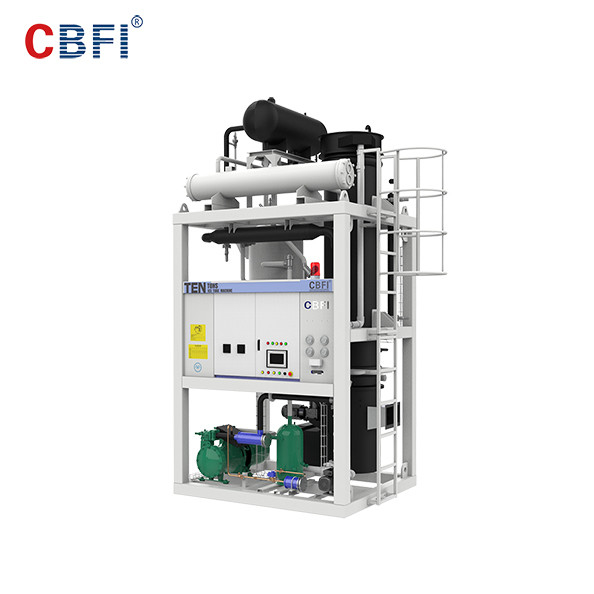

10 ton tube ice machine
3. Machine parameter
|
|
* Ice dropping design: protect ice cutter and make the ice cutter motor
running well.
* Unique Design of Middle Partition: no gap between the ice making tube
and middle partition panel, so the ice dropping smoothly.
* Ice Tube Evaprator:
ice making tube: 1.5 mm thickness Stainless Steel 304;
evaporator floor : 10 mm thickness Stainless Steel;
middle partition: 35 mm thickness Carbon Steel;
evaporator wall : 8 mm thickness Carbon Steel.
* Heat exchanger: improve the refrigerantion efficiency. Energy saving: low
to 80 kw.h per ton ice.
5. More details
* Automatic ice out let: no need hand operation, save labor cost.
* PLC controller: german siemens PLC controller control automatically,
only need 2 people operate ( one people to pack the ice, one people to
put the ice into cold storage).
* Japan 304 SUS seamless steel pipe: make the ice more clean and make
sure the machine have longer life span.
* Different ice size for choice : 22mm , 28mm and 35mm .
6. Ice Tube Machine Main components
| Item No. | Name of Components | Brand Name |
| 1 | Compressor | Germany /Bock |
| 2 | PLC | Germany SIMENS |
| 3 | Expansion valve | Denmark DANFOSS |
| 4 | Solenoid valve of Water supply | Denmark DANFOSS |
| 5 | Oil filter | America Emerson |
| 6 | High and low pressure meter | Switzerland REFCO |
| 7 | Electrical components | South Korea LG (LS) |
| 8 | Circulating water pump | China Nan Fang |
| 9 | Evaporator Material | Stainless Steel 304 (SUS304) |
CBFI 30 ton tube ice machine in Malaysia
CBFI 10 ton and 15 ton tube ice machines in Indonesia
